Seven function Woodworking professional machine with aluminium wagon 2600 mm, planer 360 mm, circular saw Ø 315 mm whit high precision engraver, sliding carriage stroke 2600 mm, 3 independent motors 3 CV

COD: DMCI007 - EAN: 8056095440872

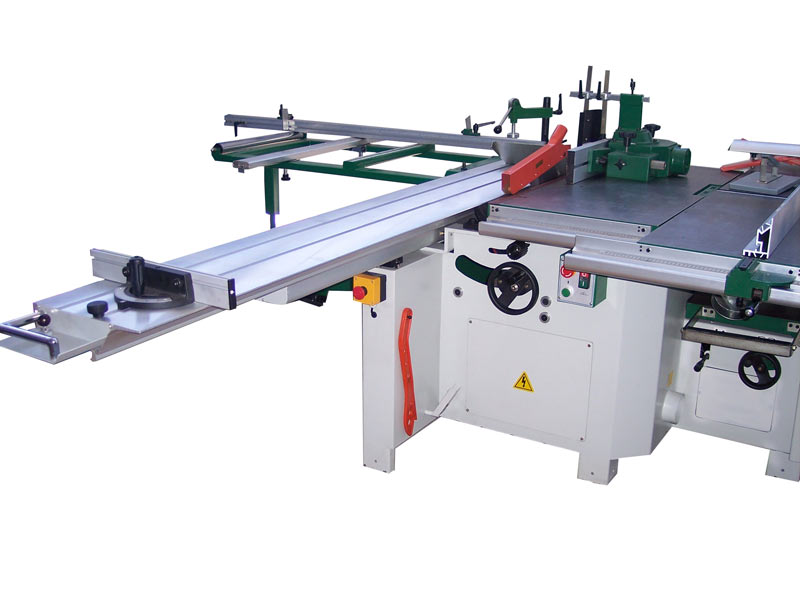

Professional 7 Function woodworking machine model America 2600-350 powered by Damatomacchine



If you need more information about this product sign up here (without any commitment) and specify your interest in this machine

If you are a returning customer use this page to send us your requests

4979

List Price: 6.473,00 €  -  PROMO: 4.979,00 € (VAT Included)

Product: Available   -  Condition: New
Delivery times: 30 working days

Terms and Conditions of Sale  -  Returns and Refunds

DESCRIPTION

Professional combination wood working machine is the medium model between the model with planer of 410 mm (Professional) and the model with planer of 310 (Super model). This machine includes all improvements that make America Professional the top of the range such as milliliter handwheels for adjusting the blade tilt, the engraver with variable speed and the carriage with ultra-precise and reliable guides. It’s equipped with aluminium wagon 2600 mm, planer spindle 350 mm, tilt cast iron table, 3 independent motors 3 CV, toupee with 3 speeds and tilt saw with engraver. The 3 independent motors with 3 CV each, allows an extreme working power. As other combined machines Damatomacchine, you can have it on request in three-phase version.

Zoom

Professional 7 Function woodworking machine model America 2600-350 powered by Damatomacchine Professional 7 Function woodworking machine model America 2600-350 powered by Damatomacchine

Shipping cost in UK and Ireland:  389,00 € (VAT Included)

We ship in all the world. If you need to know the price of shipping in some other state, or if you need more information (billing, shipping, or return of the products) write us using this web page or if you prefer, call us directly to our call center: +39 0331 333422

DATA SHEET
DIMENSIONS
Dimensions with carriage and morticer 3200 mm (width) x 3650 mm (lenght)
Dimensions without carriage and morticer 1650 mm (width) x 1500 mm (lenght)
Net weight 700 Kg
CIRCULAR SAW
Saw Diameter 315 mm
Saw blade engraver Diameter 80 mm
Type Tilts from 0° to 45° - height adjustable
Speed of blade 5200 rpm
Maximun depth of cut 95 mm
SLIDING CARRIAGE
Dimensions carriage 1200 x 600 mm
Type carriage The carriage runs on an aluminium beam close to the blade
Dimensions aluminium Beam 2600 x 310 mm
Sliding carriage stroke 2700 mm
SURFACE - THICKNESSER PLANER
Number of knives N°3
Lenght spindle 360 mm
Diameter spindle 70 mm
Surface width 360 mm
Maximum height 245 mm
Tilt Table Tilt cast iron
Feeding speed 7,5 m/min
SPINDLE MOULDER
Type spindle moulder Vertical with n°3 selectable speeds
Max spindle height 115 mm
Spindle diameter 30 mm
Max diameter of spindle tooling 220 mm
Spin speed 1750 - 3500 - 6700 rpm
MORTICER
Cutter block speed 5500 rpm
Chuck capacity 16 mm
MOTOR CIRCULAR SAW
Powerful 3 Hp
Voltage 1 Phase 220 V (3 Phase on demand)

Powerful 3 Hp
Voltage 1 Phase 220 V (3 Phase on demand)
MOTOR SPINDLE MOULDER
Powerful 3 Hp
Voltage 1 Phase 220 V (3 Phase on demand)

ACCESSORY ON DEMAND

Accessories purchased together with the main machine do not pay additional shipping costs (these costs are already included in the shipment of the main machine). If you just want to buy only the accessories (without the main machine), please contact us by email (writing to info@damatomacchine.com), by phone (calling the number 0039 0331333422) or by site ( writing to this page ). Our staff will prepare an accurate estimate of the shipping costs

Saw Blade Z20/315 Ø 315 mm

Circular blade for wood type Widia with a diameter 15 mm and 20 teeths
(Cod: DMACSC5)

46,00 €
(VAT Included)

Saw Blade Z40/315 Ø 315 mm

Circular blade for wood type Widia with a diameter 315 mm and 40 teeths
(Cod: DMACSC6)

55,00 €
(VAT Included)

Saw Blade Z60/315 Ø 315 mm

Circular blade for wood di type Widia with a diameter 315 mm and 60 teeths
(Cod: DMACSC7)

70,00 €
(VAT Included)

Saw Blade Z80/315 Ø 315 mm

Circular blade for wood di type widia with a diameter 315 mm and 80 teeths
(Cod: DMACSC8)

79,00 €
(VAT Included)

Wheels kit moving machine

Wheels kit moving machine
(Cod: DMAC055)

112,00 €
(VAT Included)

Mortising bits set

Mortising bits set chuck capacity of 16 mm - left rotation
(Cod: DMAC061)

70,00 €
(VAT Included)

Universal cutter head set Ø 100

Box equipped with one profile cutter head of Ø 100 and 7 profiles
(Cod: DMAC059)

217,00 €
(VAT Included)

Adaptar cone 16 mm Ø 6

Adaptar cone 16 mm Ø 6 for universal router bits with stem 6 mm
(Cod: DMAC016)

51,00 €
(VAT Included)

Adaptar cone 16 mm Ø 8

Adaptar cone 16 mm Ø 8 for universal router bits with stem 8 mm
(Cod: DMAC076)

51,00 €
(VAT Included)

Sharpening machine Meta 2

Sharpening machine for mortising bits and saw Blades
(Cod: DMAF002)

383,00 €
(VAT Included)
