Professional woodworking machine 7 function with saw blade Ø 315 mm, sliding carriage stroke of 3000 mm, vertical spindle moulder, surface/thickness planer wide 410 mm

COD: DMCI006 - EAN: 8056095440391

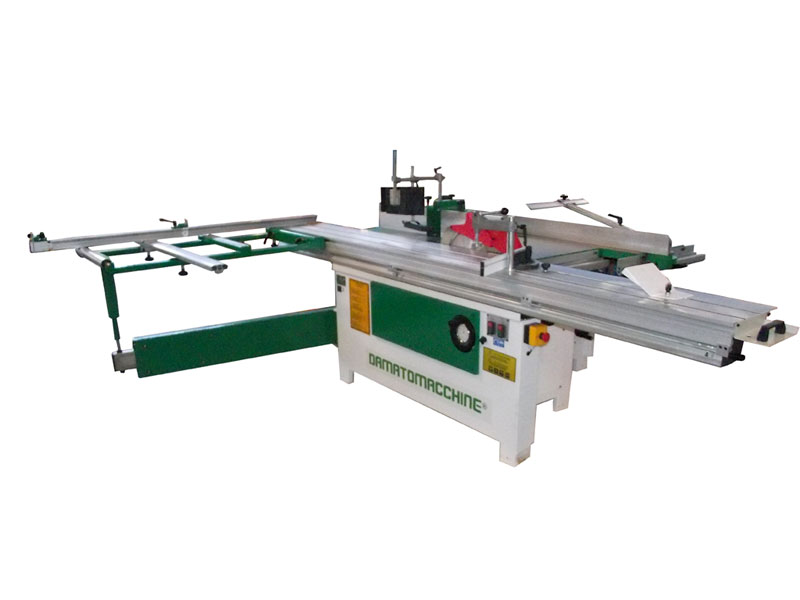

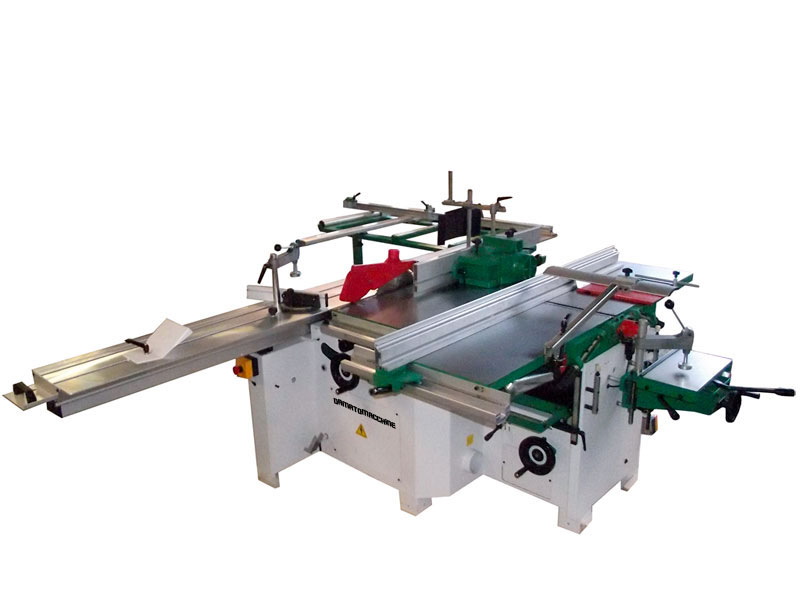

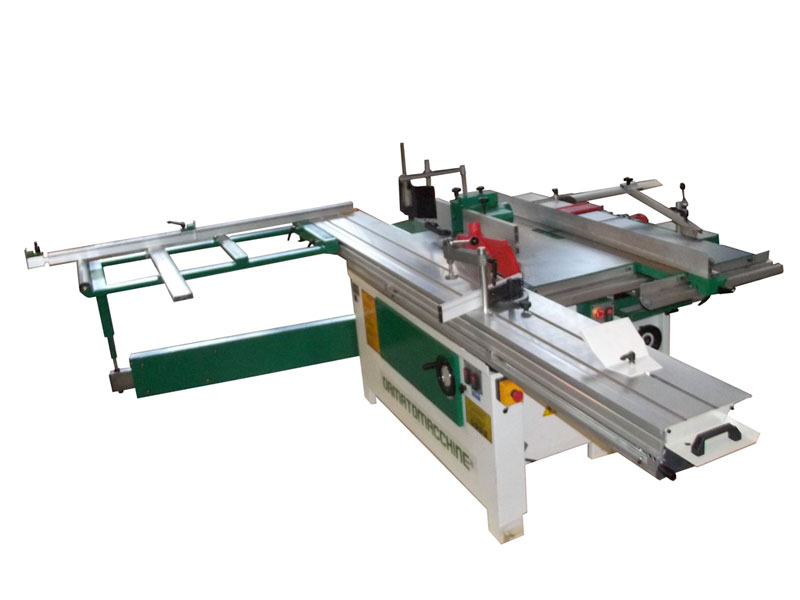

Seven function professional combination machine model America 3000-410



If you need more information about this product sign up here (without any commitment) and specify your interest in this machine

If you are a returning customer use this page to send us your requests

5417

List Price: 7.042,00 €  -  PROMO: 5.417,00 € (VAT Included)

Product: Available   -  Condition: New
Delivery times: 10 working days

Terms and Conditions of Sale  -  Returns and Refunds

DESCRIPTION

America Professional 3000-410 is a professional woodworking machine. This machine features Cast iron tilt table, spindle moulder 3 speed, Tilt circular saw with morticer and saw blade engraver. The saw blade engraver further puts over height and precise performance. The sliding carriage runs on a aluminium bea, length 3000 mm close to the blade. The plane allow to work plank (board) length 410 mm. A powerful motor 3Hp 3 Phase is available as an option. The surface planer and ticknesser planer is length 410 mm with 3 knives. The basic model is supplied with 3 indipendent powerful 3Hp single phase motors providing ample power. A powerful motor 3Hp in 3 Phase is available as an option. American Professional is also available with a planer of 350 mm width and sliding carriage of 2600 mm length.

Zoom

Seven function professional combination machine model America 3000-410 Seven function professional combination machine model America 3000-410 Seven function professional combination machine model America 3000-410 Seven function professional combination machine model America 3000-410

Shipping cost in UK and Ireland:  389,00 € (VAT Included)

We ship in all the world. If you need to know the price of shipping in some other state, or if you need more information (billing, shipping, or return of the products) write us using this web page or if you prefer, call us directly to our call center: +39 0331 333422

DATA SHEET
DIMENSIONS
Dimensions with carriage and morticer 2700 x 3000 mm
Dimensions without carriage and morticer 1200 x 3000 mm
Net weight 700 Kg
CIRCULAR SAW
Max. Saw Diameter 315 mm
Saw blade engraver Diameter 80 mm
Type tilts from 0 to 45° - height adjustable stop
Speed blade 5200 rpm
Maximun depth of cut 95 mm
SLIDING CARRIAGE
Dimensions carriage 1200 x 600 mm
Type carriage The carriage runs on an aluminium beam close to the blade
Dimensions Beam 3000 x 310 mm
Sliding carriage stroke 3100 mm
SURFACE PLANER -THICKNESSER PLANER
Number of knives 3
lenght spindle 410 mm
Spindle Dia. 70 mm
surface width 410 mm
Max depht of cut 245 mm
Tilt Table Cast iron
Feeding speed 7,5 m/min
SPINDLE MOULDER
Type spindle moulder Vertical
Max spindle height 115 mm
Spindle Dia. 30 mm
Max dia. Spindle tooling 220 mm
Speeds 1750 - 3500 - 6700 rpm
MORTICER
Cutter block speed 5500 rpm
Chuck capacity 16 mm
MOTOR CIRCULAR SAW
Powerful 3 Hp
Voltage 1 Phase 220 V (3 Phase on demand)
MOTOR MORTICER
Powerful 3 Hp
Voltage 1 Phase 220 V (3 Phase on demand)
MOTOR SPINDLE MOULDER
Powerful 3 Hp
Voltage 1 Phase 220 V (3 Phase on demand)

ACCESSORY ON DEMAND

Accessories purchased together with the main machine do not pay additional shipping costs (these costs are already included in the shipment of the main machine). If you just want to buy only the accessories (without the main machine), please contact us by email (writing to info@damatomacchine.com), by phone (calling the number 0039 0331333422) or by site ( writing to this page ). Our staff will prepare an accurate estimate of the shipping costs

Saw Blade Z20/315 Ø 315 mm

Circular blade for wood type Widia with a diameter 15 mm and 20 teeths
(Cod: DMACSC5)

46,00 €
(VAT Included)

Saw Blade Z40/315 Ø 315 mm

Circular blade for wood type Widia with a diameter 315 mm and 40 teeths
(Cod: DMACSC6)

55,00 €
(VAT Included)

Saw Blade Z60/315 Ø 315 mm

Circular blade for wood di type Widia with a diameter 315 mm and 60 teeths
(Cod: DMACSC7)

70,00 €
(VAT Included)

Saw Blade Z80/315 Ø 315 mm

Circular blade for wood di type widia with a diameter 315 mm and 80 teeths
(Cod: DMACSC8)

79,00 €
(VAT Included)

Wheels kit moving machine

Wheels kit moving machine
(Cod: DMAC055)

112,00 €
(VAT Included)

Mortising bits set

Mortising bits set chuck capacity of 16 mm - left rotation
(Cod: DMAC061)

70,00 €
(VAT Included)

Universal cutter head set Ø 100

Box equipped with one profile cutter head of Ø 100 and 7 profiles
(Cod: DMAC059)

217,00 €
(VAT Included)

Adaptar cone 16 mm Ø 6

Adaptar cone 16 mm Ø 6 for universal router bits with stem 6 mm
(Cod: DMAC016)

51,00 €
(VAT Included)

Adaptar cone 16 mm Ø 8

Adaptar cone 16 mm Ø 8 for universal router bits with stem 8 mm
(Cod: DMAC076)

51,00 €
(VAT Included)

Sharpening machine Meta 2

Sharpening machine for mortising bits and saw Blades
(Cod: DMAF002)

383,00 €
(VAT Included)
