Table saw with saw unit with blade tilt 90°–45°, cutting height max. 4” (102 mm), circular saw Ø 315 mm, sliding carriage stroke of 1700 mm, powered by two single phase motor with a power of 2200 W

COD: DMCI301 - EAN: 8056095440407

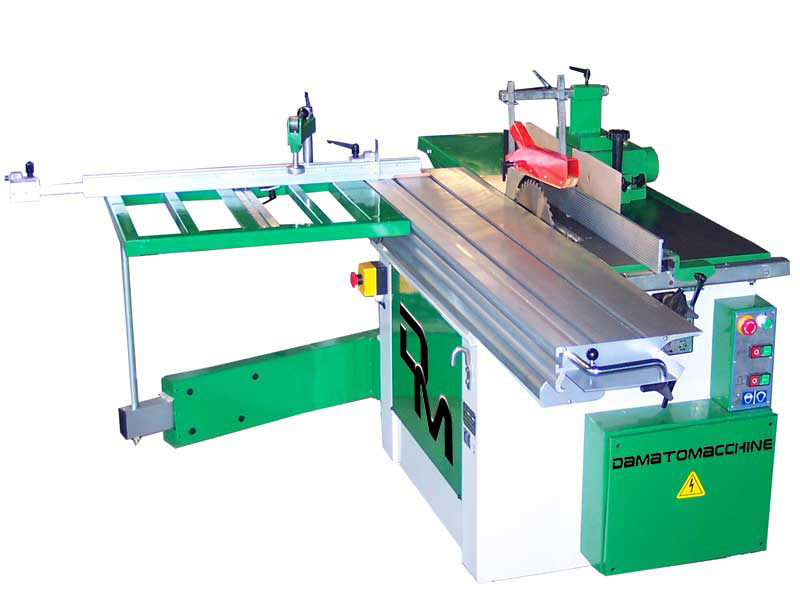

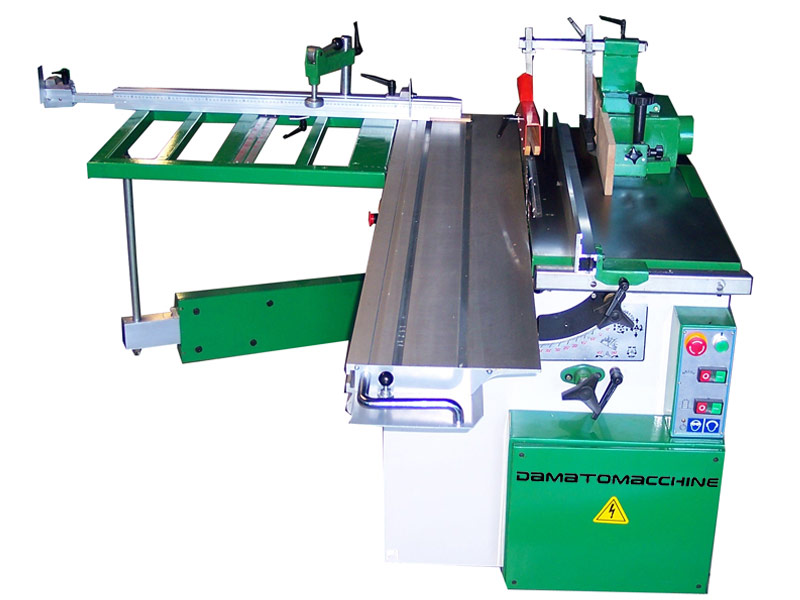

Woodworking sliding Table Saw Tsi Super 1600 by Damatomacchine



If you need more information about this product sign up here (without any commitment) and specify your interest in this machine

If you are a returning customer use this page to send us your requests

2559

List Price: 3.326,00 €  -  PROMO: 2.559,00 € (VAT Included)

Product: Available   -  Condition: New
Delivery times: 7 working days

Terms and Conditions of Sale  -  Returns and Refunds

DESCRIPTION

The sliding saw table TSI is a woodworking machine features by an aluminium beam close to the blade, a vertical spindle moulder Ø 30 mm a saw blade engraver in front of the circular blade Ø 315 mm. The machine has 2 independent power motor Hp3 (2200 W) A powerful motor 3Hp 3 Phase is available as an option. Aluminium beam size is 310W x 1610L mm and has a stroke of 1700 mm. The blade can be tilted to 45° and with the rescue of the saw blade engraver allows to cut every kind of wood. 3 speeds and an independently 3Hp single phase motor are provided on the spindle moulder. It’s designed to meet professional woodworker needs.

Zoom

Woodworking sliding Table Saw Tsi Super 1600 by Damatomacchine Woodworking sliding Table Saw Tsi Super 1600 by Damatomacchine Woodworking sliding Table Saw Tsi Super 1600 by Damatomacchine

Shipping cost in UK and Ireland:  219,00 € (VAT Included)

We ship in all the world. If you need to know the price of shipping in some other state, or if you need more information (billing, shipping, or return of the products) write us using this web page or if you prefer, call us directly to our call center: +39 0331 333422

DATA SHEET
DIMENSIONS
Dimensions with carriage 2300 x 1950 x 850 mm
Dimensions without carriage 1420 x 1950 x 850 mm
Net weight 280 Kg
CIRCULAR SAW
Saw Diameter 315 mm
Saw blade engraver Diameter 90 mm
Type tilts - Hight adjustable
Speed blade 3500 rpm
Maximum cutting capacity to 90° 102 mm (with blade Ø 315 mm)
Maximum cutting capacity to 45° 75 mm (with blade Ø 315 mm)
SLIDING CARRIAGE
dimensions beam closet o the blade 310 x 1610 mm
Dimensions carriage 700 x 530 mm
sliding carriage stroke con incisore 1600 mm, senza incisore 1700 mm
type carriage The carriage runs on an alloy track close to the blade.
SPINDLE MOULDER
Type Vertical
Max spindle height 115 mm
Spindle Diameter 30 mm
Max diam. spindle tooling 220 mm
Speeds 1750 - 3500 - 6700 rpm
Max. profondità pozzetto toupie 74 mm
MOTOR SPINDLE MOULDER
Phase 3 Hp ( 2200 W )
Voltage 1 Phase 220 V (3 Phase on demand)
CIRCULAR SAW MOTOR
Phase 3 Hp ( 2200 W )
Voltage 1 Phase 220 V (3 Phase on demand)

ACCESSORY ON DEMAND

Accessories purchased together with the main machine do not pay additional shipping costs (these costs are already included in the shipment of the main machine). If you just want to buy only the accessories (without the main machine), please contact us by email (writing to info@damatomacchine.com), by phone (calling the number 0039 0331333422) or by site ( writing to this page ). Our staff will prepare an accurate estimate of the shipping costs

Saw Blade Z20/315 Ø 315 mm

Circular blade for wood type Widia with a diameter 15 mm and 20 teeths
(Cod: DMACSC5)

46,00 €
(VAT Included)

Saw Blade Z40/315 Ø 315 mm

Circular blade for wood type Widia with a diameter 315 mm and 40 teeths
(Cod: DMACSC6)

55,00 €
(VAT Included)

Saw Blade Z60/315 Ø 315 mm

Circular blade for wood di type Widia with a diameter 315 mm and 60 teeths
(Cod: DMACSC7)

70,00 €
(VAT Included)

Saw Blade Z80/315 Ø 315 mm

Circular blade for wood di type widia with a diameter 315 mm and 80 teeths
(Cod: DMACSC8)

79,00 €
(VAT Included)

Wheels kit moving machine

Wheels kit moving machine
(Cod: DMAC055)

112,00 €
(VAT Included)

Universal cutter head set Ø 100

Box equipped with one profile cutter head of Ø 100 and 7 profiles
(Cod: DMAC059)

217,00 €
(VAT Included)

Box Cutters

Pack consists of 12 universal milling shank 6 mm
(Cod: DMAC022)

75,00 €
(VAT Included)

Adaptar cone 16 mm Ø 6

Adaptar cone 16 mm Ø 6 for universal router bits with stem 6 mm
(Cod: DMAC016)

51,00 €
(VAT Included)

Adaptar cone 16 mm Ø 8

Adaptar cone 16 mm Ø 8 for universal router bits with stem 8 mm
(Cod: DMAC076)

51,00 €
(VAT Included)

Sharpening machine Meta 2

Sharpening machine for mortising bits and saw Blades
(Cod: DMAF002)

383,00 €
(VAT Included)
