Metal Bench Lathe with automatic advancement threading , distance between centers of 700 mm , maximum turning diameter of 250 mm and single-phase motor 750 W

COD: DMTO003 - EAN: 8056095440452

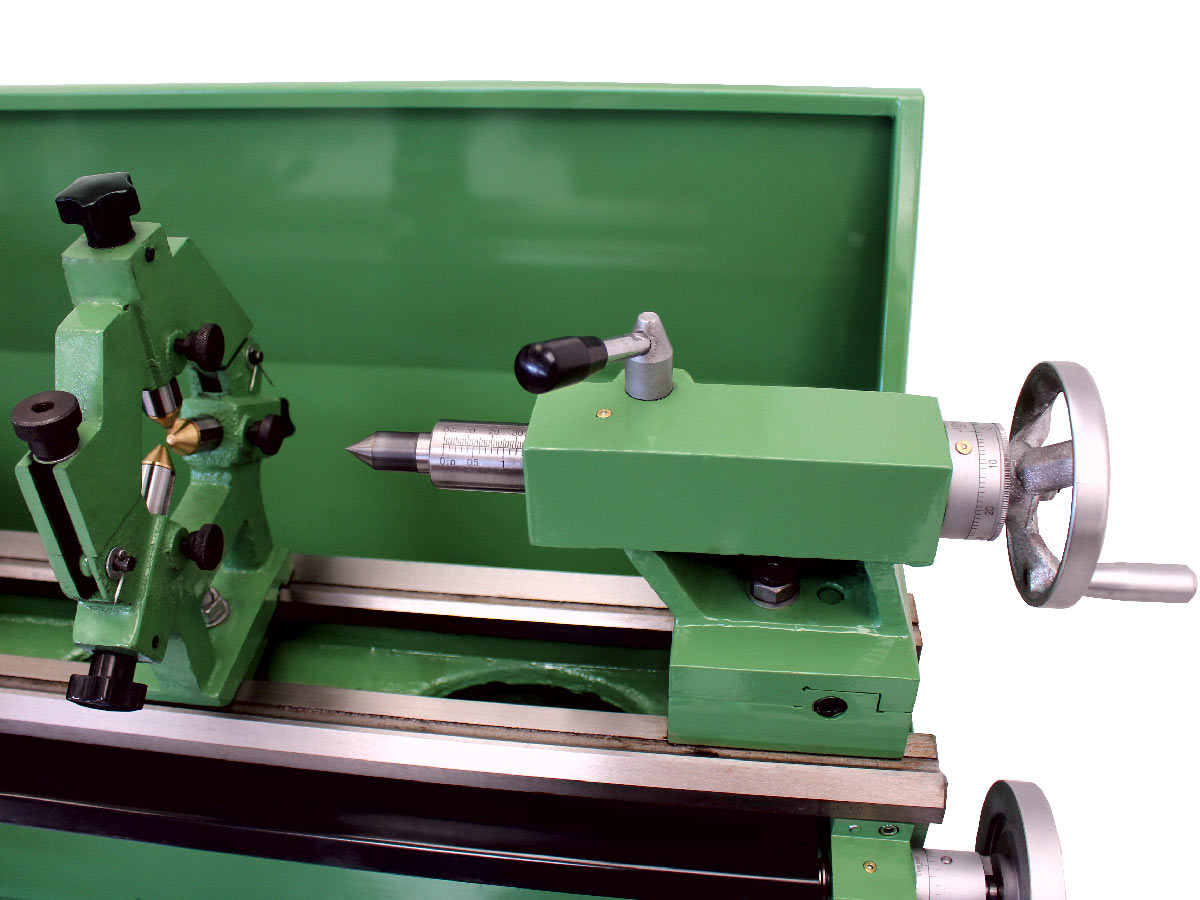

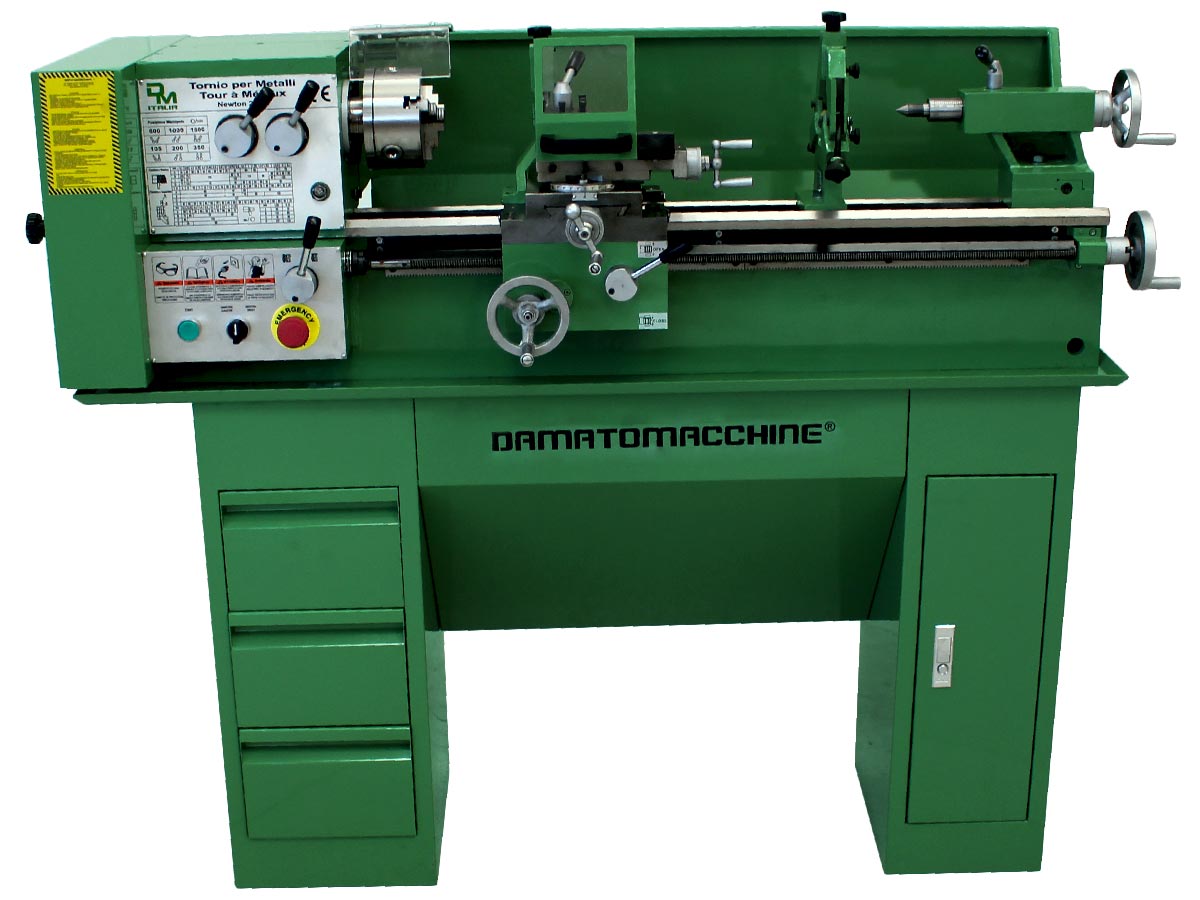

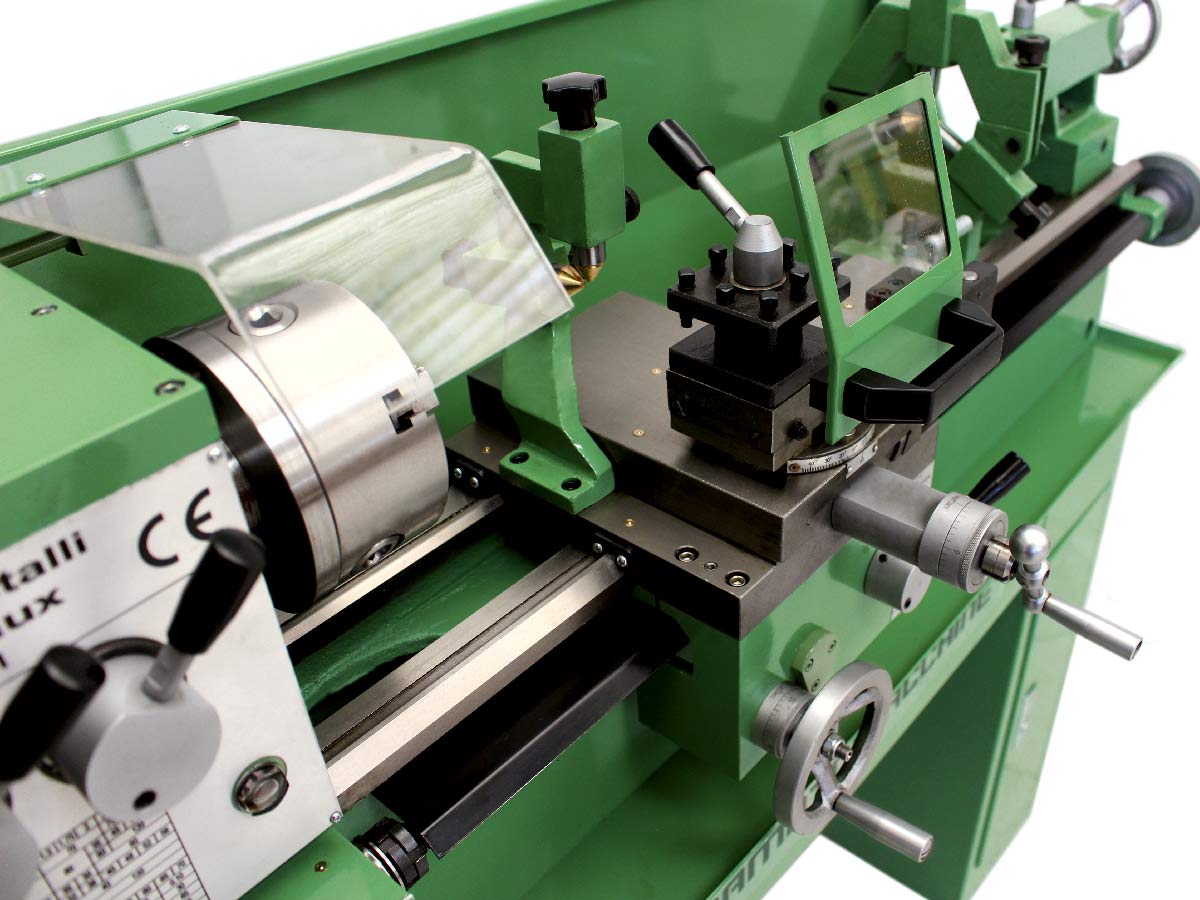

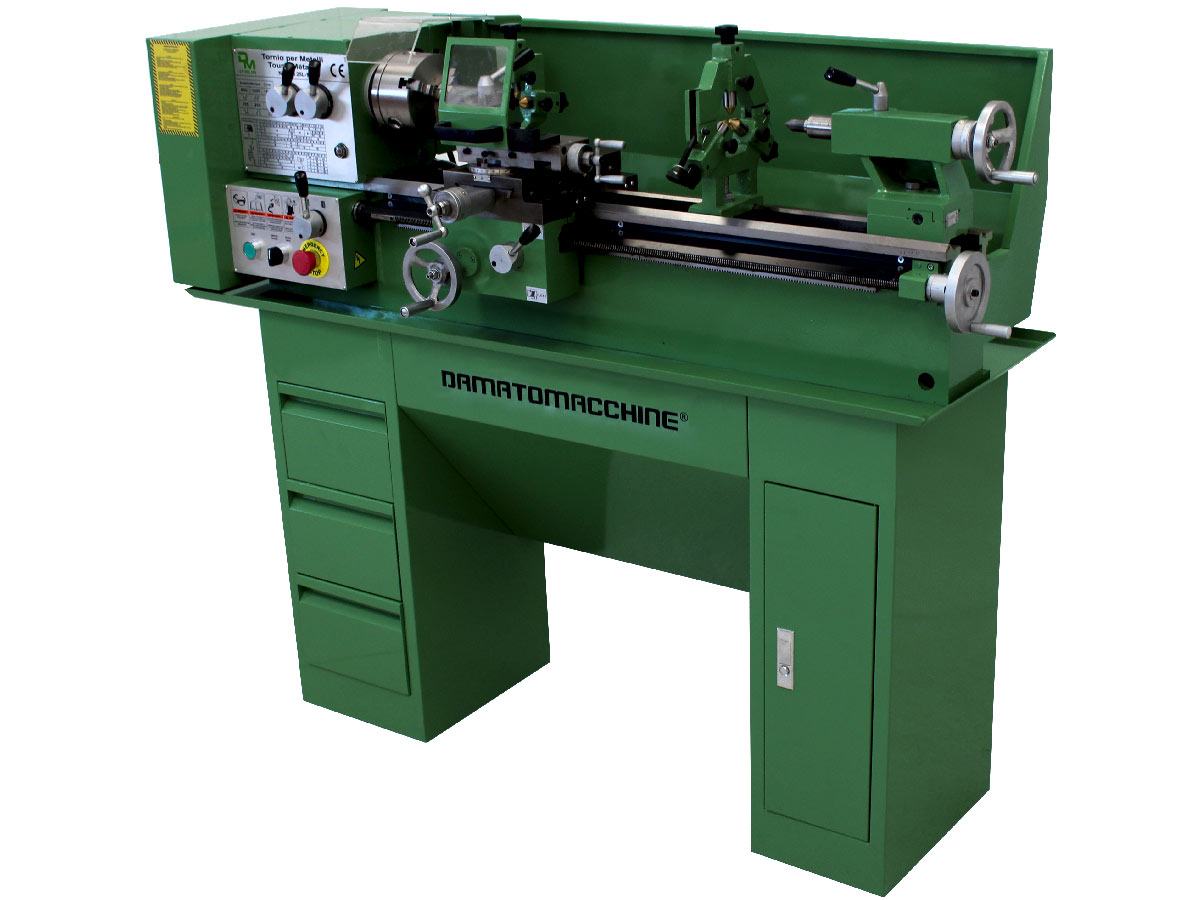

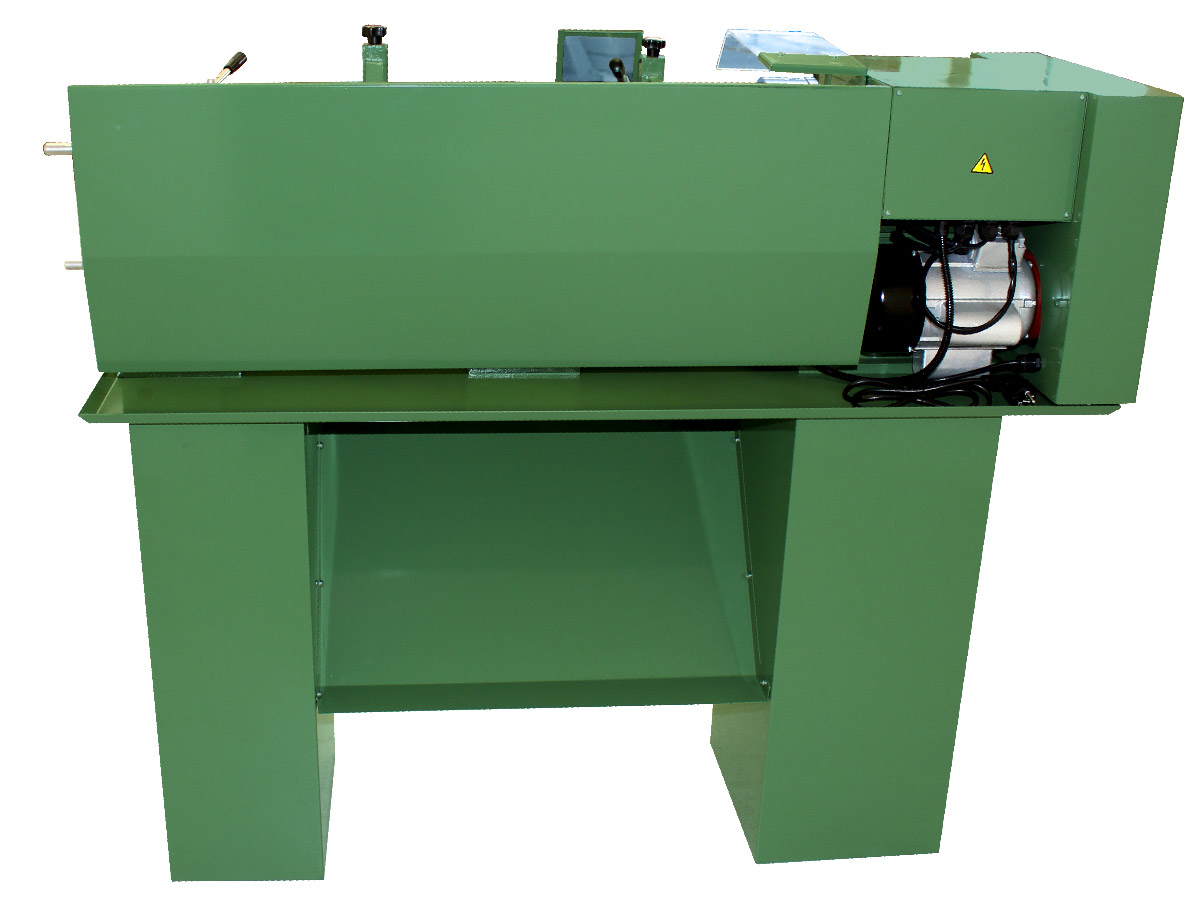

Metalworking Bench Late model Newton 25L1 by Damatomacchine



If you need more information about this product sign up here (without any commitment) and specify your interest in this machine

If you are a returning customer use this page to send us your requests

1459

List Price: 1.897,00 €  -  PROMO: 1.459,00 € (VAT Included)

Product: Available   -  Condition: New
Delivery times: 20 working days

Terms and Conditions of Sale  -  Returns and Refunds

DESCRIPTION

With a heavy-duty, cast iron structure and metal finish BV25L1 is a professional metal lathe and is the ideal machine for the professional hobby users and artisans. The accurate automatic feed make this an extremely versatile machine to thread and swing. The machine is supplied with a 3-jaw chuck, feed carriage, 2 live centre with conical attack, 2 rest, metal stand and working tool kit. It’s possible to order at an affordable price the 4-jaw chuck and many other accessories.
It's equipped with bearings SKF

Zoom

Metalworking Bench Late model Newton 25L1 by Damatomacchine Metalworking Bench Late model Newton 25L1 by Damatomacchine Metalworking Bench Late model Newton 25L1 by Damatomacchine Metalworking Bench Late model Newton 25L1 by Damatomacchine

Shipping cost in UK and Ireland:  180,00 € (VAT Included)

We ship in all the world. If you need to know the price of shipping in some other state, or if you need more information (billing, shipping, or return of the products) write us using this web page or if you prefer, call us directly to our call center: +39 0331 333422

DATA SHEET
DIMENSION LATHE
Dimensions with stand 1450(L) x 430(W) x 1200(H) mm
Dimensions without stand 1450(L) x 400(W) x 400(H) mm
Net weight 155 Kg
METAL LATHE
Distance between center 700 mm
Center height 125 mm
Max swing over the bed 250 mm
Hole through spindle 26 mm
Chuck dia. 125 mm
Type chuck 3 jaw autocentering
Spindle bore taper MT4
Tail stock taper MT2
Base size of the quick change tool post 180 x 70 mm
Max tool diameter 10 mm
Inch threads 8 to 56 TPI
Metric threads 0,05 mm to 3,5 mm
Max lenght cutting 420 mm
Longitudinal travel 70 mm
Spindle speed 115 to 1620 rpm
Cross travel 115 mm
Carriage tilt 45°
MOTOR
Powerfull 750 W - 50 Hz
Voltage 1 Phase (220 V)

ACCESSORY ON DEMAND

Accessories purchased together with the main machine do not pay additional shipping costs (these costs are already included in the shipment of the main machine). If you just want to buy only the accessories (without the main machine), please contact us by email (writing to info@damatomacchine.com), by phone (calling the number 0039 0331333422) or by site ( writing to this page ). Our staff will prepare an accurate estimate of the shipping costs

Braised tool kit for working the iron 10 mm

With 6 brazed tools size 10x10 mm, ideal for iron working
(Cod: DMACTF377)

34,00 €
(VAT Included)

Face plate for metal lathe Ø 240 mm


(Cod: DMACTF03)

78,00 €
(VAT Included)

Rotary tailstock lathe- Taper CM2


(Cod: DMACTF02)

36,00 €
(VAT Included)

Live center chuck - Taper CM2


(Cod: DMACTF42)

76,00 €
(VAT Included)

Tailstock chuck taper MT2


(Cod: DMACTF186)

90,00 €
(VAT Included)

Quick change turret model T00A


(Cod: DMACT01)

259,00 €
(VAT Included)

5 point metal turning set 10 mm with interchangeable plates

5 point metal turning set size 10x10 mm and interchangeable plates, ideal for iron working
(Cod: DMAC663)

138,00 €
(VAT Included)

4 jaw chuck self centering Ø 125 mm


(Cod: DMACTF52)

144,00 €
(VAT Included)

5 point metal turning set 12 mm with interchangeable plates

ideal for iron working 12x12 mm, and interchangeable plates, ideal for iron working
(Cod: DMAC620)

150,00 €
(VAT Included)

Quick-change turret square base quadra A


(Cod: DMACT02)

192,00 €
(VAT Included)
